Athletics Track Grand Prix Solution

The Athletics Grand Prix Solution is a world-class timing and results system designed for elite track and field competitions. Built around advanced FinishLynx timing technology, the system combines high-speed photo-finish cameras, wireless start systems, results display software, and integrated networking tools to deliver accurate race timing and professional results presentation.

With multiple independent timing systems and advanced display capabilities, the Grand Prix Solution provides the reliability, redundancy, and visibility required for high-level athletics competitions.

Talk to a Lynx Expert

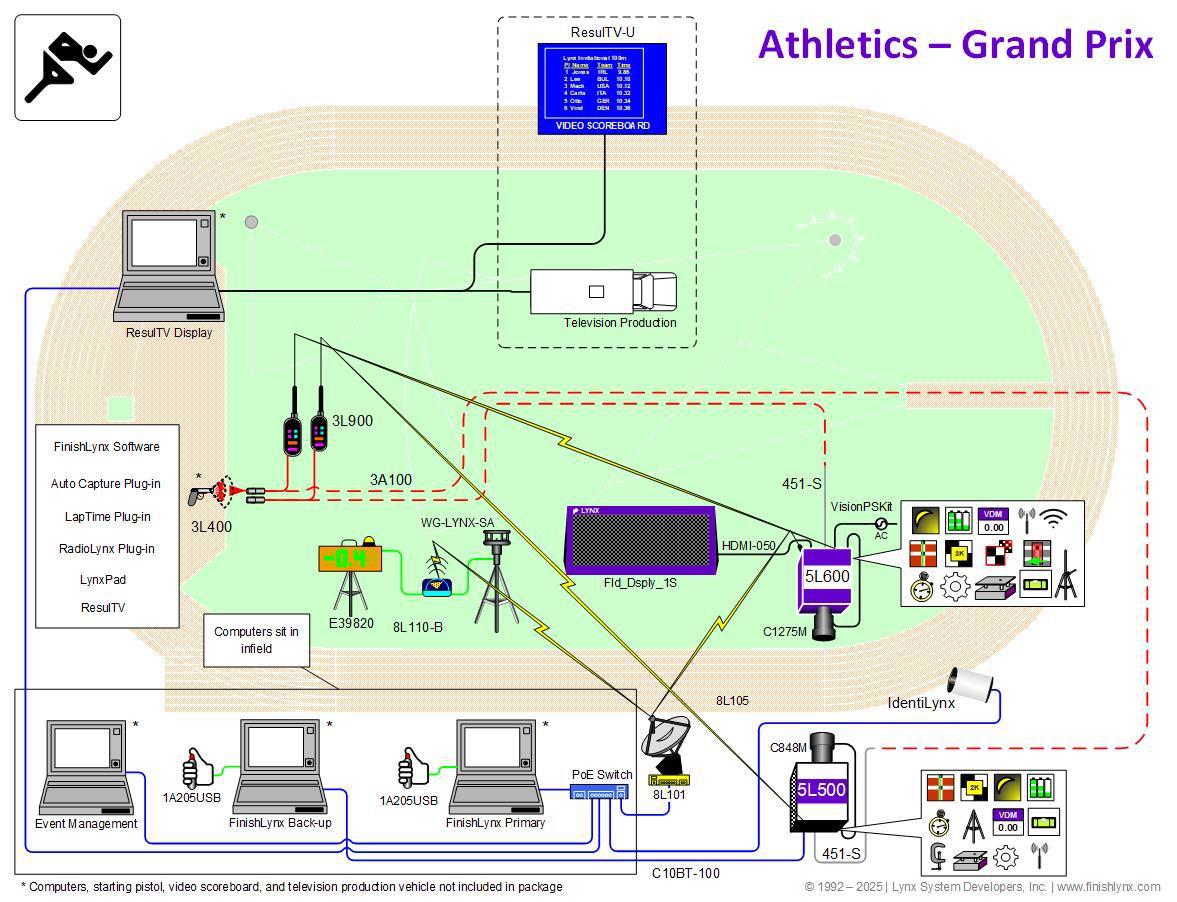

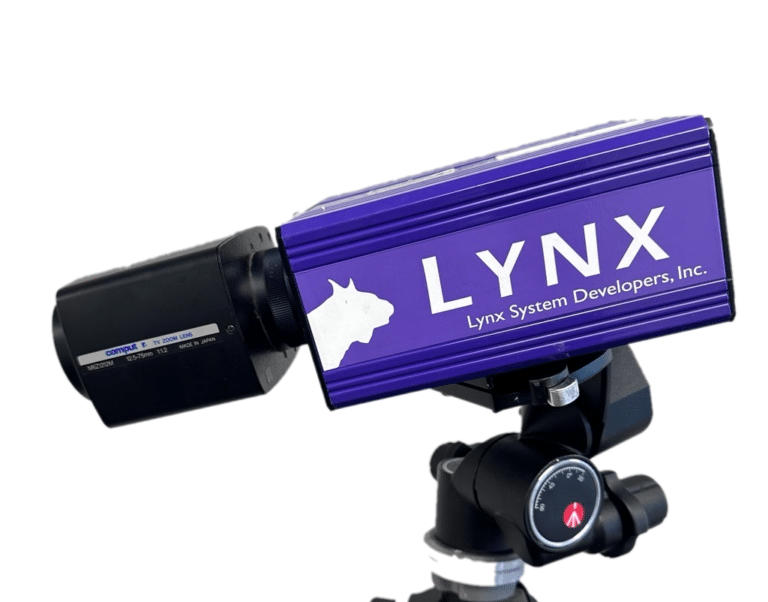

The Grand Prix Solution expands on the Championship Elite timing system by adding premium hardware and software designed to support major athletics events. At the center of the system is the EtherLynx Vision PRO photo-finish camera, capable of capturing finish images at up to 3,000 frames per second while delivering high-resolution results images and reliable finish evaluation.

To meet World Athletics standards for championship competitions, the system includes two independent photo-finish cameras and wireless start systems, creating redundant timing systems that operate independently for added reliability.

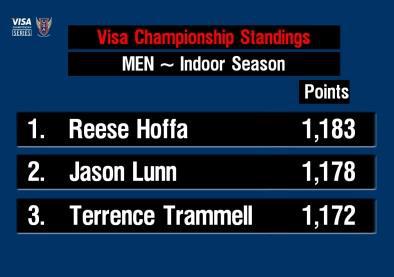

The Solution also integrates display and networking tools that allow results to be shared throughout the venue. ResulTV display software converts race data into scalable graphics that can be shown on LED displays or broadcast systems, while the Video Display Module enables live results and running times to be shown directly on compatible video boards.

  • Primary Camera: EtherLynx Vision PRO, 3,000 fps, - 2,048 vertical pixels, color, On-Board Level, timerenabled
  • LuxBoost Low-Light Capture Mode
  • Video Display Module for HDMI Display Output
  • Wireless-Enabled Option - for Wi-Fi Transfers
  • Internal RadioLynx - Battery Pack & Level Options
  • Electronic Filter Control - This upgrade allows you to enable or disable low-light camera filters on your Vision camera right from within the FinishLynx software.
  • C-Mount, 12-75mm Motorized Zoom Lens - compatible with the Vision series cameras.
  • Second Camera: EtherLynx Vision, 2,000 fps upgrade, - 1,280 vertical pixels, color, timer-enabled
  • LuxBoost Low-Light Capture Mode - LuxBoost greatly amplifies the brightness during low-light captures. Evening events that were once too dark to capture can be recorded with ease.
  • Video Display Module - for HDMI display output
  • Internal RadioLynx, Battery Pack & Level Options
  • C-Mount, f1.2, 8-48mm Motorized Zoom Lens
  • IdentiLynx Full-Frame Video Camera (30 fps, 720p)
  • AirLynx Wireless Gateway/ - Amplified Antenna

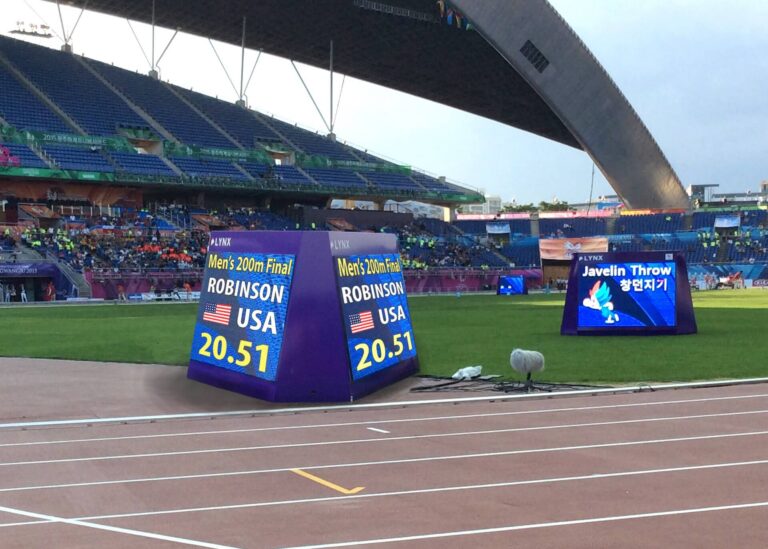

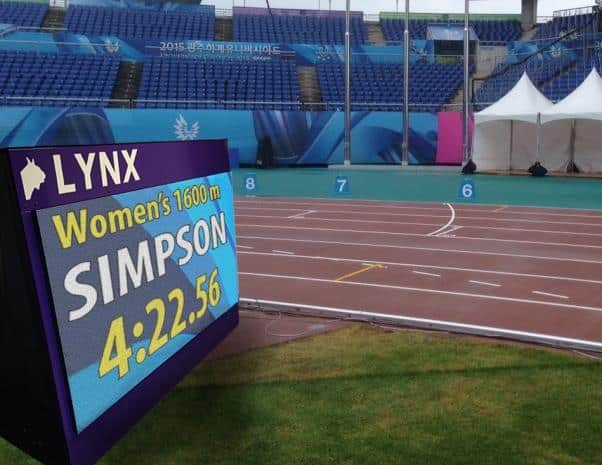

  • LED Video Display - 1-Sided
  • 4-Digit LED Wind Display - & Countdown Timer
  • Ultrasonic Wind Gauge (World Athletics-compliant)
  • SeriaLynx (Wired/Wireless) Network Adapter
  • Remote Lens & Remote Camera Positioner (x2)
  • RadioLynx Wireless Start System (x2)
  • All-inclusive Power, Ethernet, & Start Cable Set (x2)
  • Tripods, Mounting Hardware, & 3m+ Professional Tripod
  • Lynx Tech Support & 1-Year Renewable Warranty
  • ResulTV - Live Data Display Software
  • FinishLynx - Multi-Language Photo-Finish Software
  • Automatic Capture Mode (ACM) Plug-in
  • RadioLynx Wireless Start Plug-in
  • LapTime Plug-in - Lap times can be recorded for each competitor and integrated with FinishLynx fully automatic timing results via the FinishLynx software.
  • LynxPad - Meet Management Software
