Athletics Track Grand Prix Elite Solution

The Grand Prix Elite Solution is the most powerful athletics timing solution offered by FinishLynx. Designed for international competitions and major World Athletics meets, the system includes advanced photo-finish cameras, wireless start systems, venue displays, and integrated networking tools.

This comprehensive timing Solution provides everything required to capture precise race results, display live data across the venue, and ensure fully compliant results for elite track and field competitions.

Talk to a Lynx Expert

The Grand Prix Elite Solution expands on the capabilities of the Grand Prix Solution by adding advanced accessories designed for large-scale events and professional competition environments.

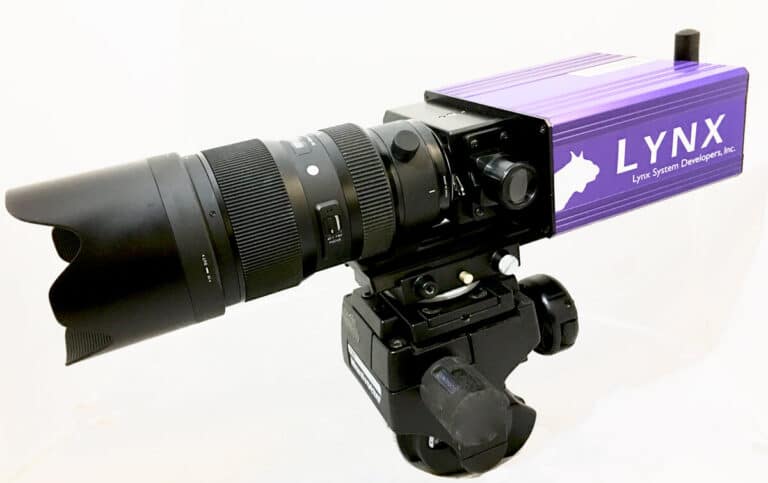

At the core of the system is the Vision PRO photo-finish camera, capable of capturing images at up to 6,000 frames per second with high vertical resolution for precise finish evaluation. A secondary Vision camera provides independent backup captures to ensure fully redundant results in accordance with World Athletics timing rules.

To further enhance result verification, the system includes an IdentiLynx front-facing camera that captures synchronized video of each athlete crossing the finish line. Combined with the photo-finish cameras, this setup provides multiple time-synchronized views for accurate race analysis.

The package also includes multiple high-visibility LED displays positioned throughout the venue to show live running times, results, wind readings, and event information for athletes and spectators.

  • Primary Camera: EtherLynx Vision PRO, 6,000 fps upgrade - 2,048 vertical pixels, On-Board Level, color, timer-enabled
  • LuxBoost Low-Light Capture Mode
  • Wireless-Enabled Option for Wi-Fi Transfers
  • Video Display Module for HDMI Display Output
  • Internal RadioLynx, Camera Level & Battery Pack Option
  • Electronic Filter Control
  • C-Mount, 12-75mm Motorized Zoom Lens
  • Second Camera: EtherLynx Vision - 2,000 fps upgrade, 1,280 vertical pixels, On-Board Level, color, timer-enabled
  • LuxBoost Low-Light Capture Mode
  • Video Display Module for HDMI Display Output
  • Internal RadioLynx, Camera Level & Battery Pack Option
  • C-Mount, f1.2, 8-48mm Motorized Zoom Lens
  • IdentiLynx Full-Frame Video Camera (30 fps, 720p)

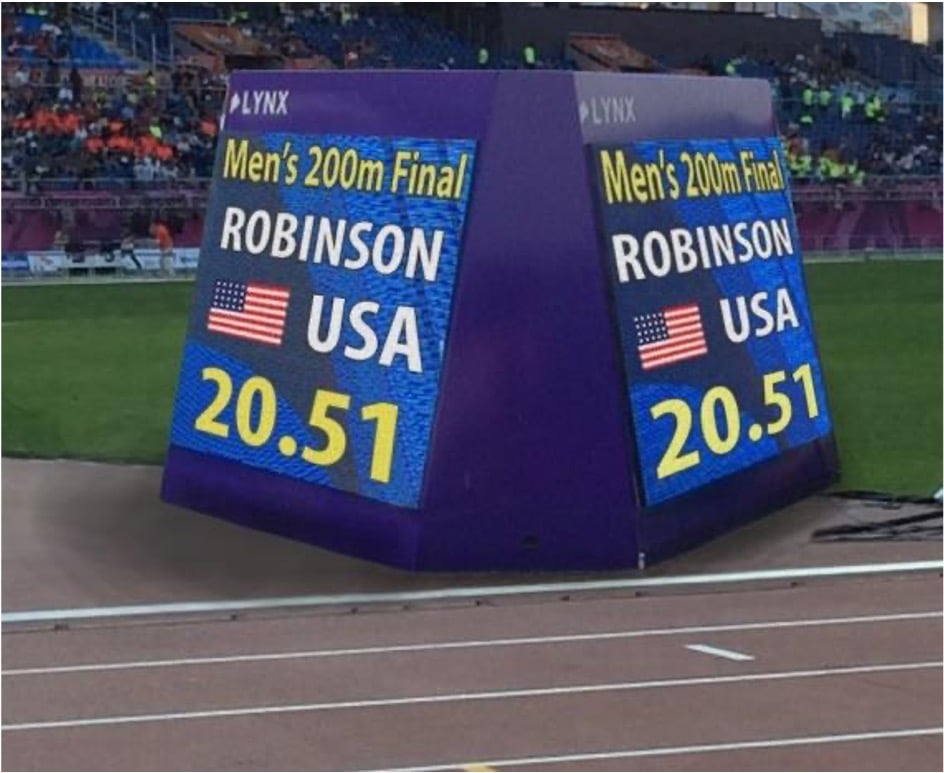

  • 2-Sided - LED Video Display
  • 1-Sided - LED Video Display (x3)

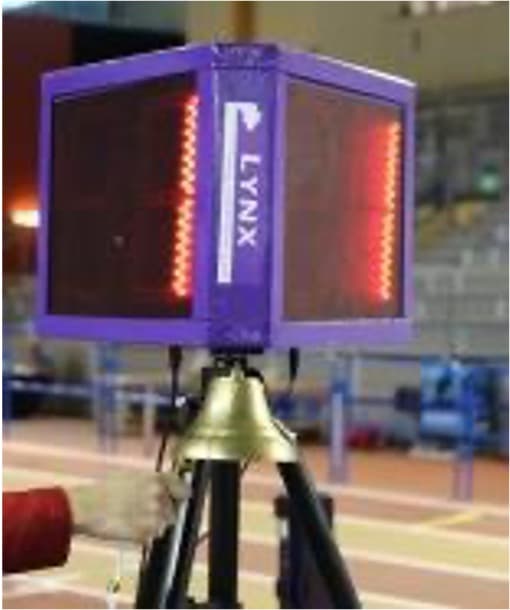

  • 2-Digit, 3-Sided Digital Lap Counter

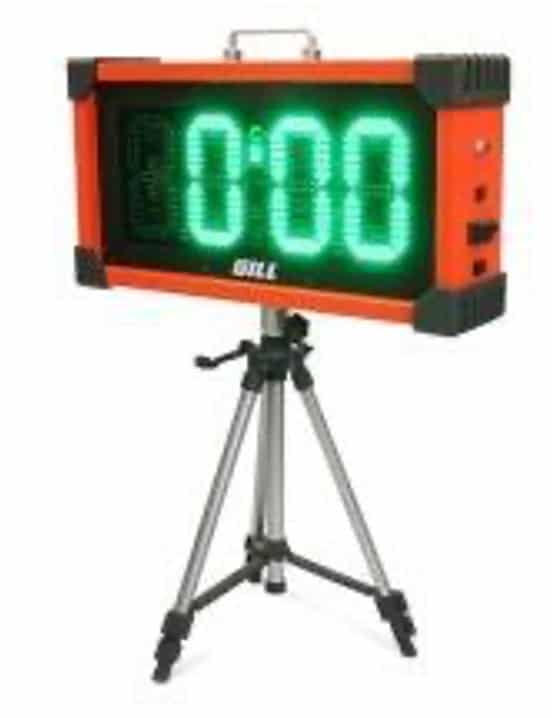

  • 4-Digit LED Wind Display & Countdown Timer
  • Short Range Wireless Photocell Kit - (x2)
  • Double Photocell Kit - with 15m Range
  • AirLynx Wireless Gateway & Amplified Antenna
  • Ultrasonic Wind Gauge (World Athletics-compliant)
  • SeriaLynx (Wired/Wireless) Network Adapter
  • Remote Lens & Remote Camera Positioner (x2)
  • RadioLynx Wireless Start System (x2)
  • All-inclusive Power, Ethernet, & Start Cable Set (x2)
  • Tripod & Mounting Hardware for Precise Adjustment
  • Professional Tripod with 3m+ elevated mounting

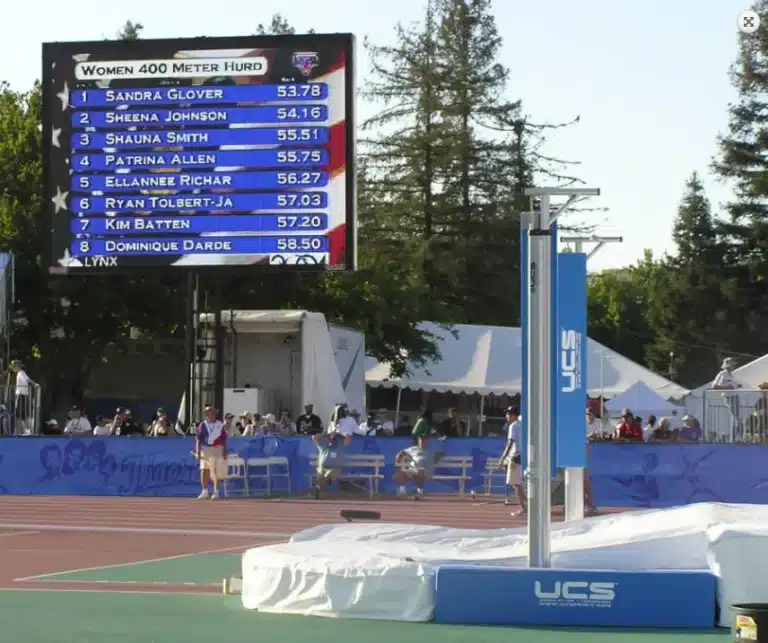

  • ResulTV - Live Data Display Software
  • FinishLynx Multi-Language Photo-Finish Software - Automatic Capture Mode (ACM) Plug-in • RadioLynx Wireless Start Plug-in • LapTime Plug-in
  • LynxPad - Meet Management Software
