Athletics Track Championship Solution

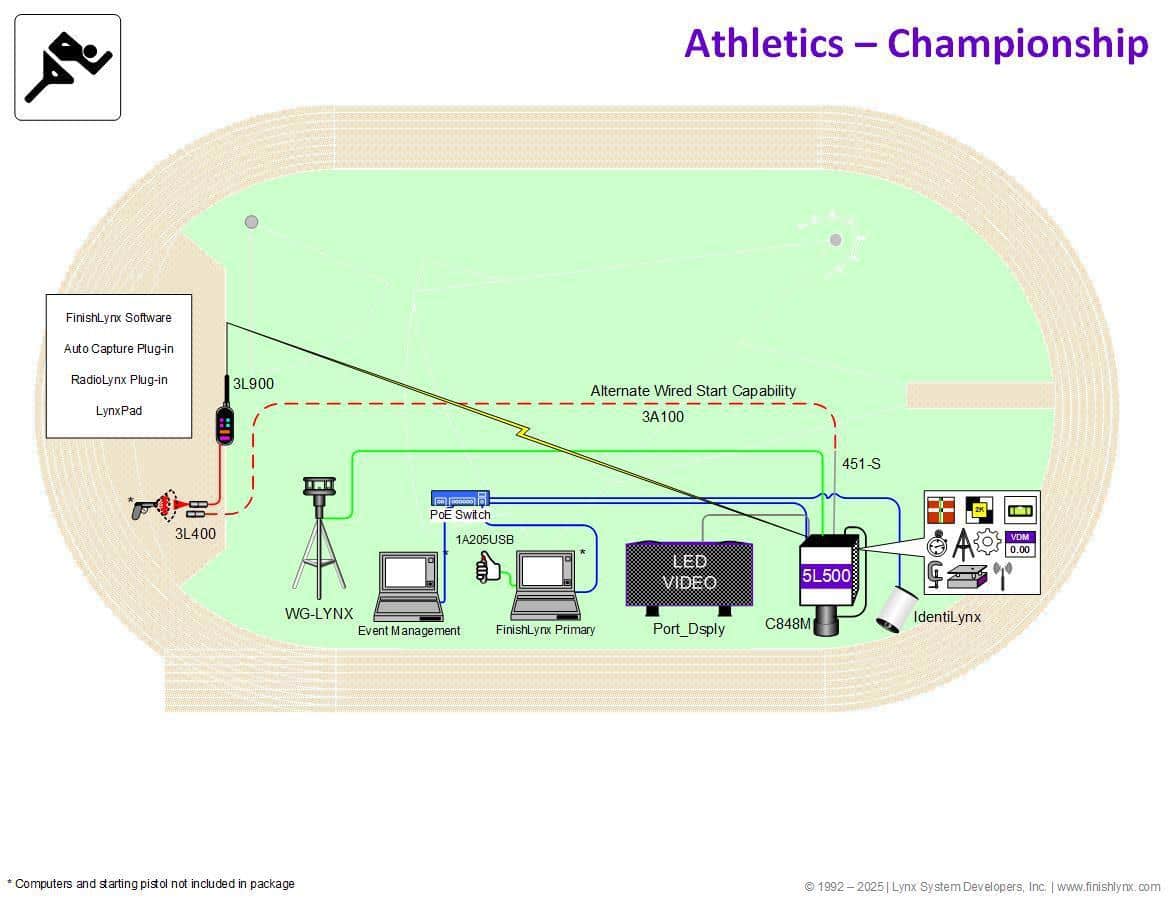

The Athletics Championship Solution is a World Athletics-approved timing system designed for professional track and field competitions. The system combines a high-speed EtherLynx Vision photo-finish camera with an IdentiLynx video camera, providing both precision finish timing and synchronized video for athlete identification.

With integrated display capabilities, wireless start technology, and automated timing features, the Championship Solution delivers reliable fully automatic timing (FAT) and enhanced results presentation for athletics competitions of any level.

Talk to a Lynx Expert

The Championship Solution builds on the functionality of the Competition Elite system by introducing additional tools designed to improve race evaluation and results presentation.

At the center of the system is the EtherLynx Vision photo-finish camera, capable of capturing full-color finish line images at up to 2,000 frames per second. The system also includes an IdentiLynx video camera that records synchronized video of the finish line, allowing officials to review races from multiple angles for accurate athlete identification.

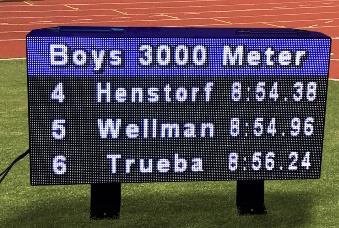

To enhance event presentation, the system includes a high-visibility Lynx Portable LED display that can show running times, results, and event information at the finish line. A World Athletics-compliant ultrasonic wind gauge is also included, allowing wind readings to be automatically integrated into race results.

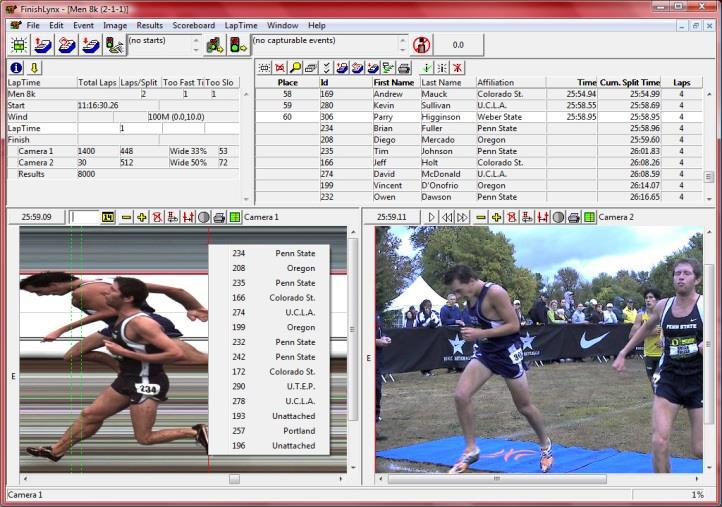

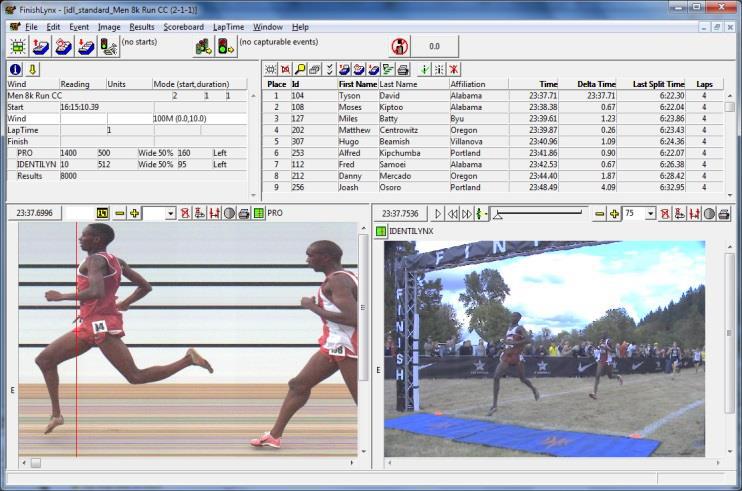

All components are managed directly through the FinishLynx timing software, enabling officials to capture, analyze, and distribute race results quickly and efficiently.

  • Camera: EtherLynx Vision - 2,000 frames/second, full-color images, On-Board Level, timer-enabled, fully upgradeable
  • EasyAlign - Full-Frame Video Alignment Mode
  • High-Resolution Option (2,000 fps x 1280 pixels of image height)
  • Video Display Module for HDMI Display Output -
  • Internal RadioLynx Option
  • C-Mount f1.2, 8-48mm Motorized Zoom Lens
  • IdentiLynx Full-Frame Video Camera - (30 fps, 720p)
  • Ultrasonic Wind Gauge - (World Athletics compliant)
  • Lynx Portable Display - smaller and more portable version of the 1/2/3-sided LED Video Boards
  • Remote Lens
  • Remote Camera Positioner - camera mounting platform that allows operators to make precision adjustments to the camera remotely from within the FinishLynx software.
  • RadioLynx Wireless Start System
  • All-inclusive Power, Ethernet, & Start Cable Set
  • Tripod & Mounting Hardware for Precision Adjustment
  • Built-in Interface to Scoreboards and Wind Gauges
  • FinishLynx32 - Multi-Language* Photo-Finish Software. Automatic Capture Mode (ACM) Plug-in. RadioLynx Wireless Start Plug-in
  • LynxPad - Multi-Language Meet Management Software
