Athletics Track Championship Elite Solution

The Championship Elite Soution delivers three time-synchronized viewpoints from the finish line: two line-scan cameras on opposing sides and full-frame IdentiLynx video capturing from the front. The 2,000 fps Vision camera serves as the primary photo-finish device, while the second 2,000 fps Vision captures reverse-angle images from the opposite perspective.

Talk to a Lynx Expert

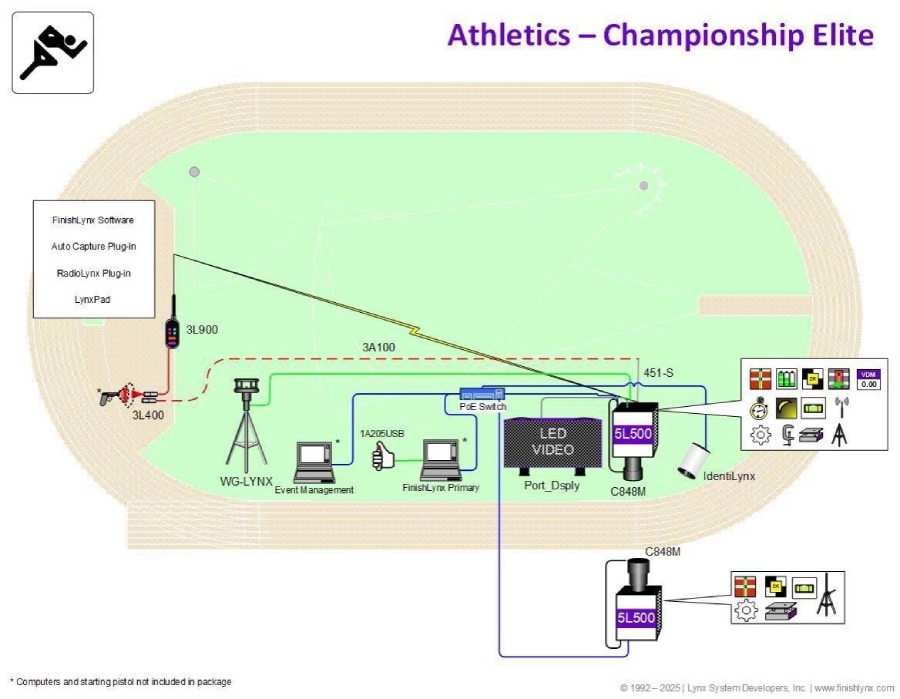

The Championship Elite Solution is an all-inclusive athletics timing system with two photo-finish cameras and an IdentiLynx head-on video camera so you can capture three different views of the finish line. The system meets all World Athletics timing guidelines and enables you to produce accurate, full-color, reverse-angle results.

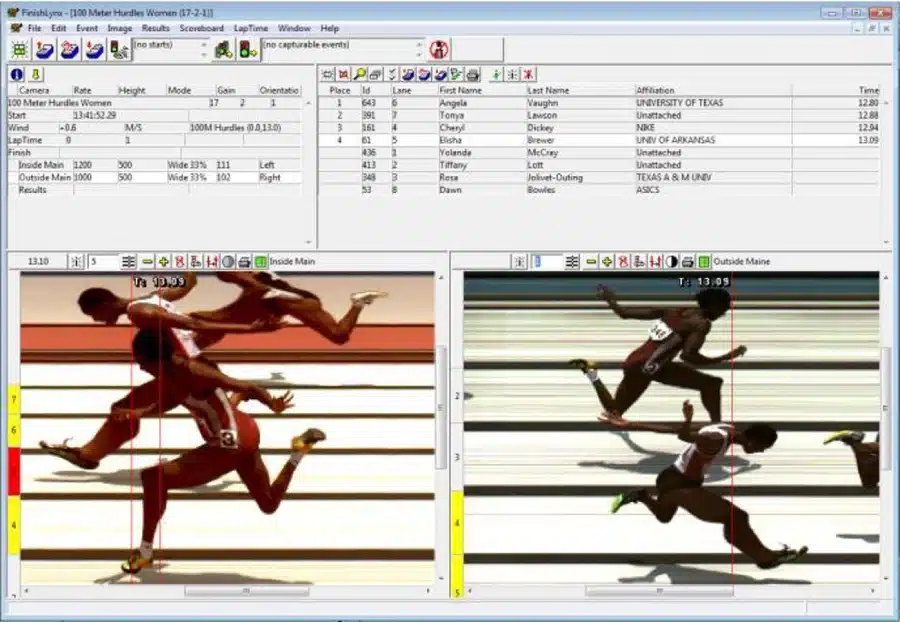

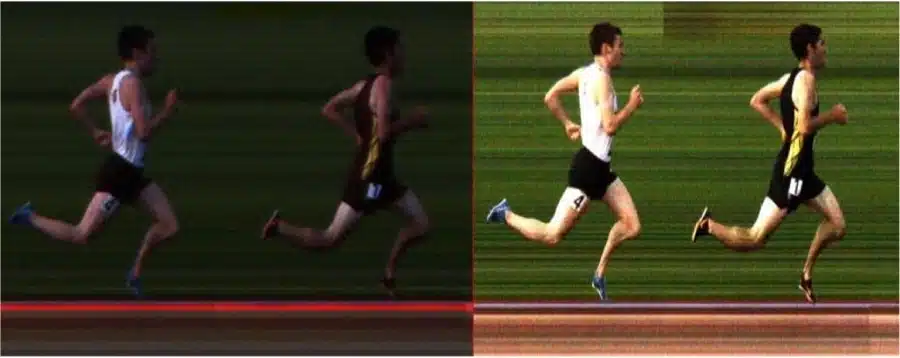

The reverse-angle camera and IdentiLynx video are especially useful in races where the view of an athlete’s torso may be obstructed by another competitor – making it difficult to establish a finish order. In this case, you can see three different time-synchronized views of the finish line to evaluate a very close finish with accuracy to up to 1/2000th of a second.

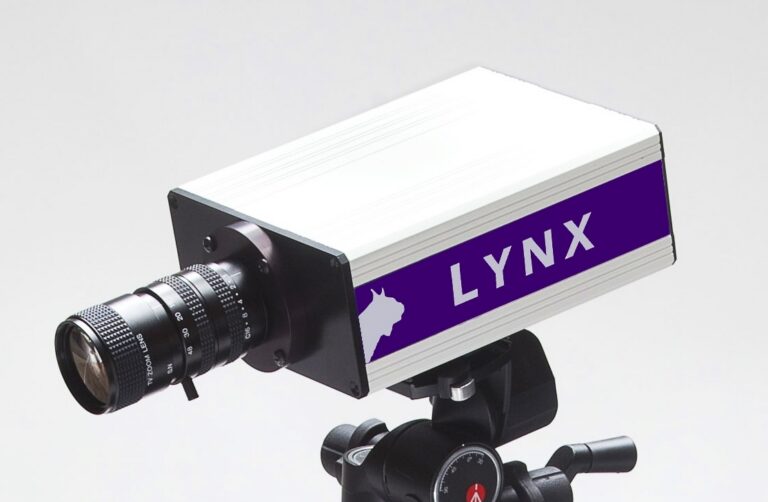

  • Primary Camera: EtherLynx Vision - 2,000 fps x 1280 pixels, color images, On-Board Level, timerenabled, EasyAlign
  • LuxBoost Low-Light Amplification Option - Evening events that were once too dark to capture can be recorded with ease.
  • Internal Battery Pack Option - The primary Vision comes with an internal battery pack that allows the camera to continue running in the event of a power outage
  • Electronic Filter Option - This upgrade allows you to enable or disable low-light camera filters on your Vision camera right from within the FinishLynx software.
  • Internal RadioLynx Option
  • Video Display Module for HDMI Display Output
  • C-Mount f1.2, 8-48mm Motorized Zoom Lens (x2)
  • Secondary Camera: - EtherLynx Vision, 2,000 fps x 1280 pixels, color images, On-Board Level, EasyAlign, High-Resolution

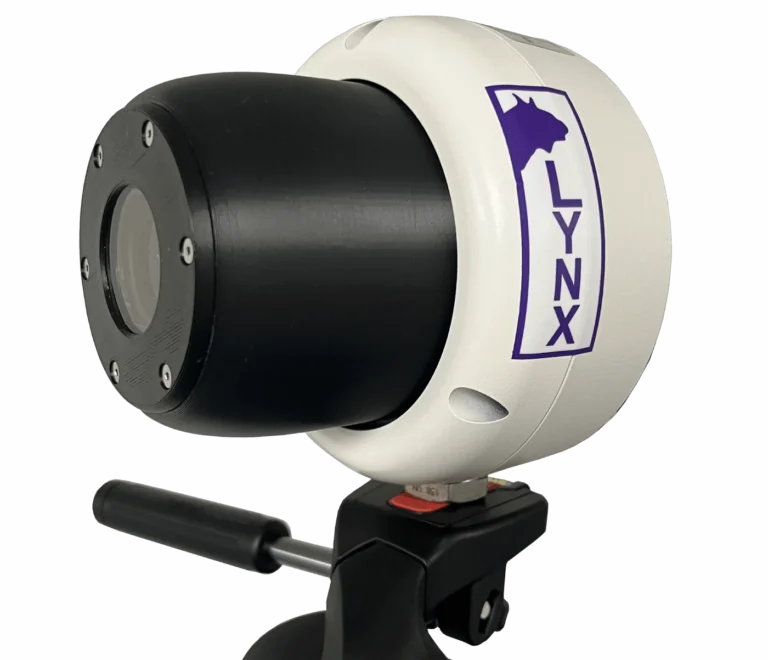

  • IdentiLynx Full-Frame Video Camera - (30 fps, 720p)

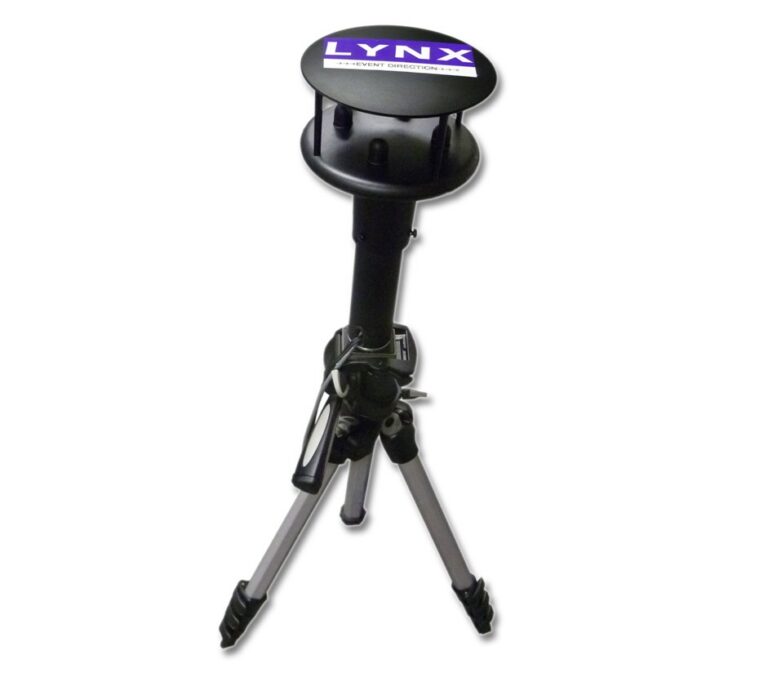

  • Ultrasonic Wind Gauge (World Athletics compliant)

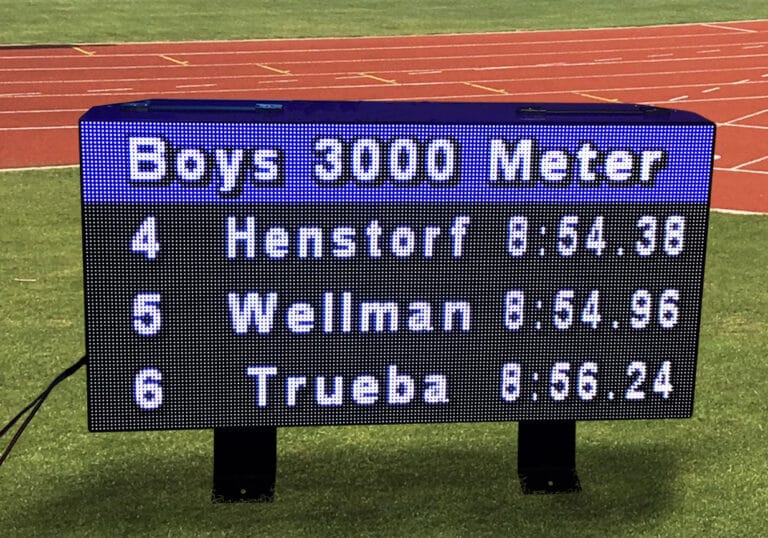

  • Lynx Portable LED Display

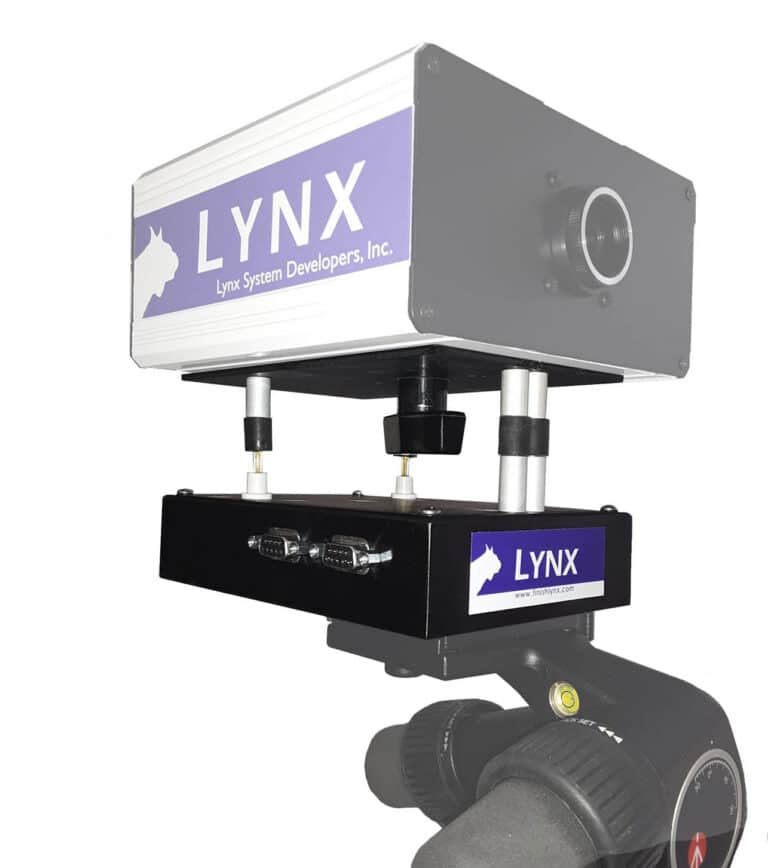

  • Remote Lens & Remote Camera Positioner (x2)

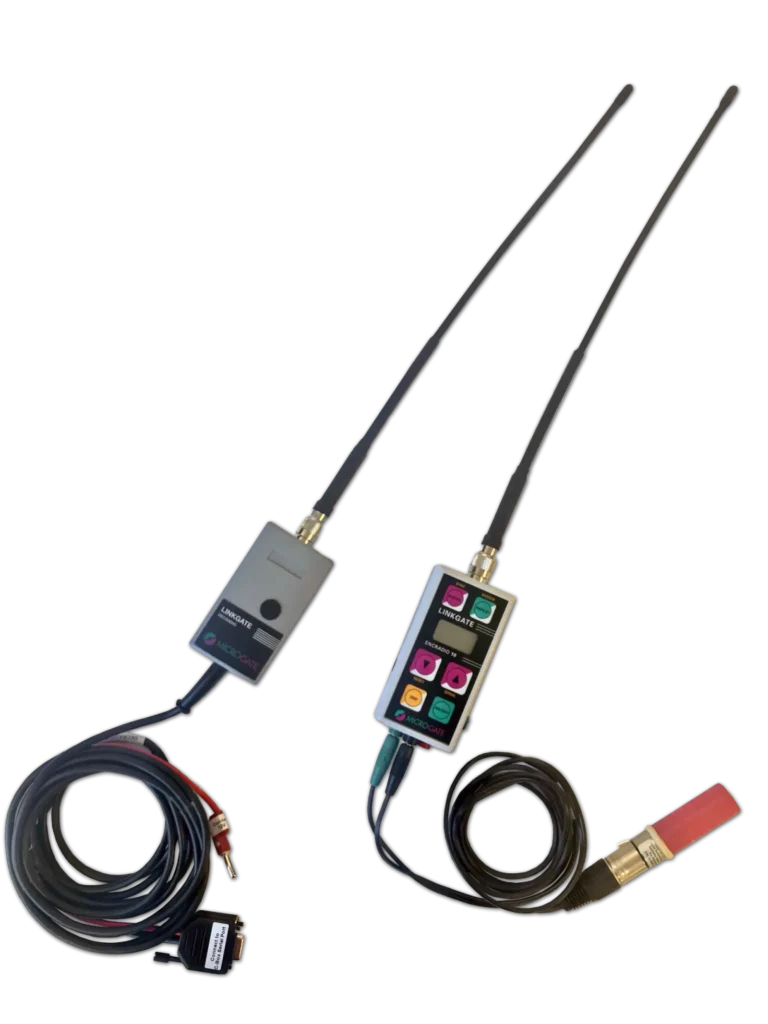

  • RadioLynx Wireless Start System
  • All-inclusive Power, Ethernet, & Start Cable Set
  • Tripod & Mounting Hardware for Precise Adjustment
  • Professional Tripod - with 3m+ elevated mounting
  • Built-in Interface to Scoreboards and Wind Gauges

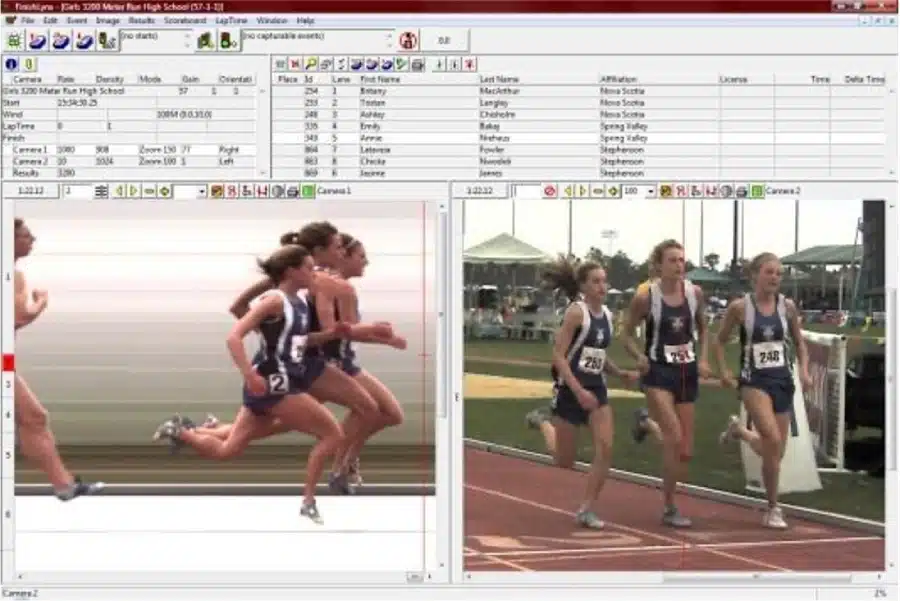

  • FinishLynx32 - Multi-Language* Photo-Finish Software, Automatic Capture Mode (ACM) Plug-in, RadioLynx Wireless Start Plug-in
  • LynxPad - Multi-Language Meet Management Software
