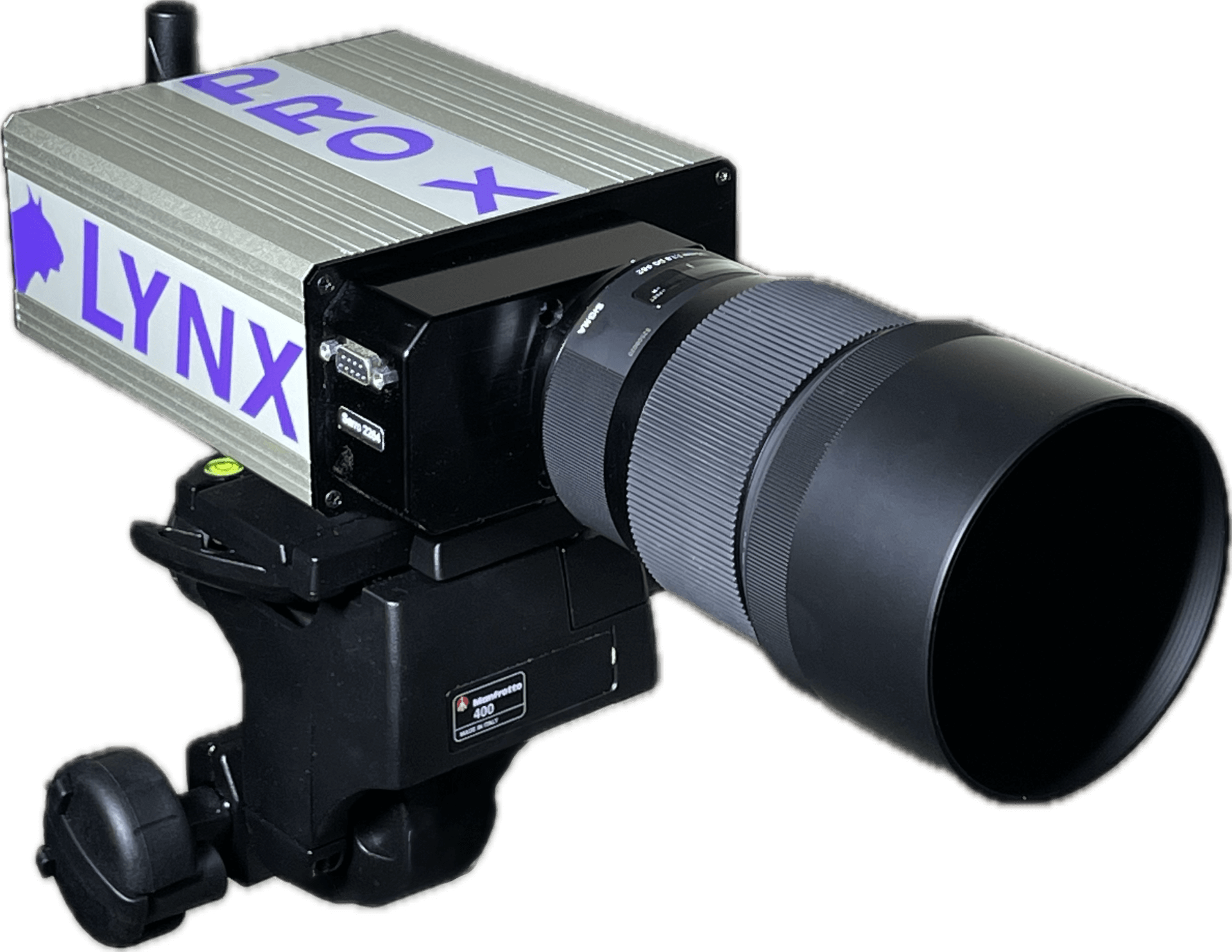

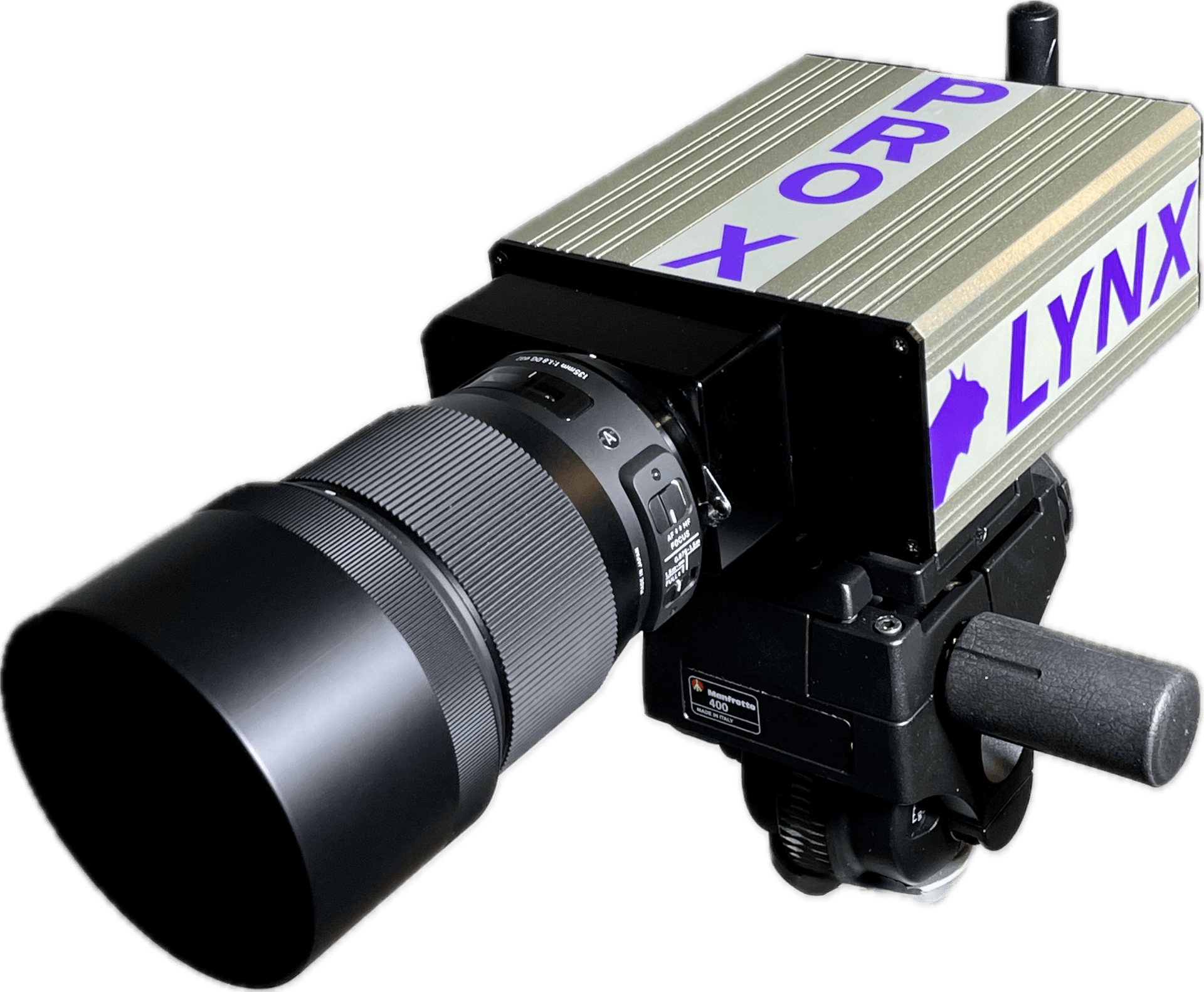

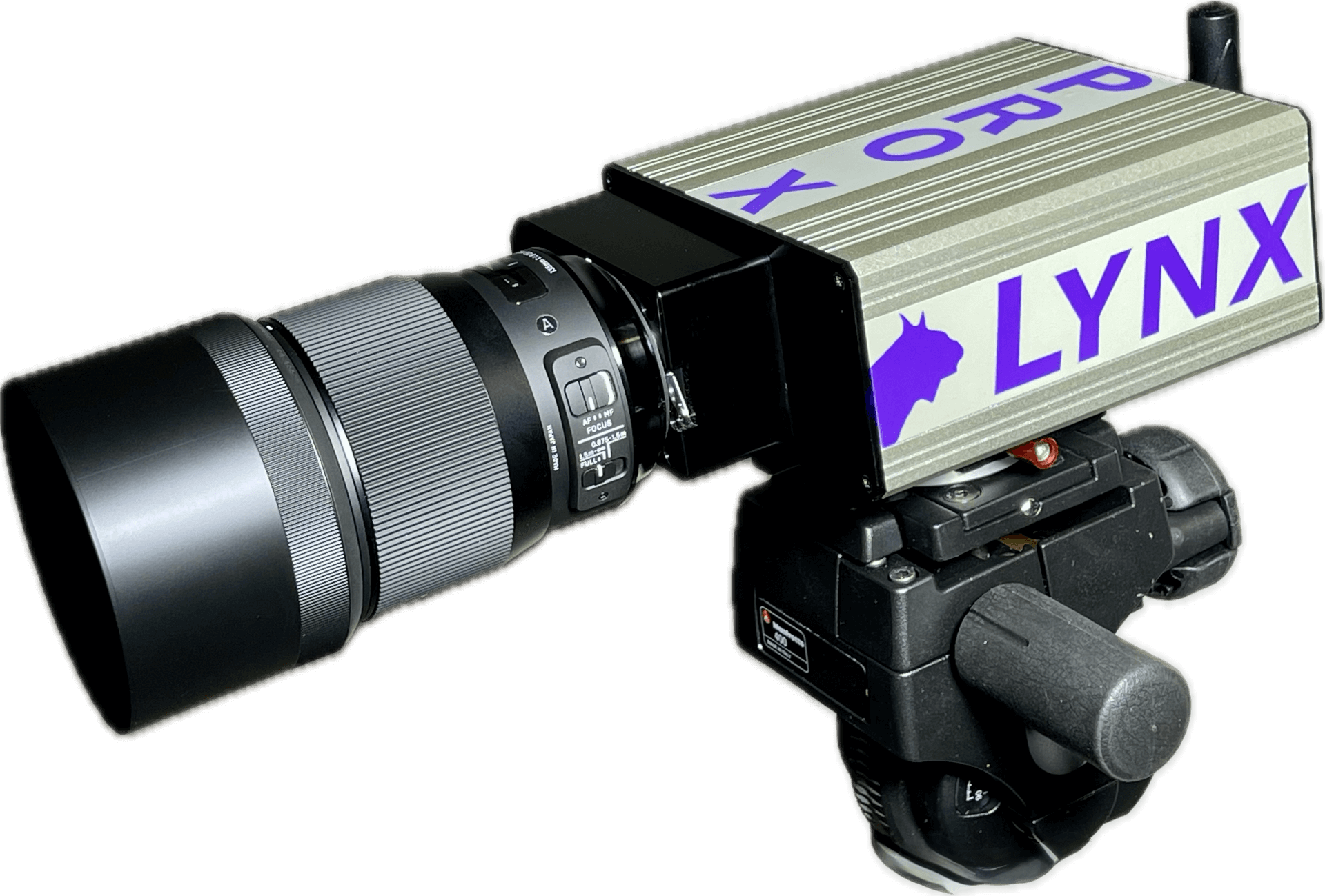

Vision PRO X Camera

The Vision PRO X is a leap forward in imaging technology, delivering unparalleled accuracy, exceptional light sensitivity, and stunning image resolution to ensure every moment is captured with absolute clarity. The Vision PRO X is an elite-level photo-finish camera that combines the user-friendly features of the EtherLynx Vision with the speed and power of the Vision PRO. The Vision PRO X is the latest in a long line of EtherLynx cameras and it brings powerful new features to the world of high-speed sports timing. Capture every moment with clarity and precision!

Talk to a Lynx Expert

Along with the EasyAlign™ and LuxBoost™ features, Vision-series cameras offer hardware and software improvements that make FinishLynx timing systems more intuitive than ever. The standard Vision PRO X is timer-enabled, captures up to 40,000 frames per second at 5120 pixels high, and includes features like LuxBoost16, On-Board Level, Internal GPS and Electronic View Finder all standard. The high frame rate (40k) and advanced capture settings make the Vision PRO X an excellent choice for high-speed timing applications like horse racing, cycling, motorsports, and more.

  • Unrivaled Precision and Clarity - Continuously variable frame rate of up to 40,000 lines per second and a pixel density exceeding 5000 pixels
  • Choose Your Lens for Maximum Flexibility - The Vision PRO X accepts a wide choice of high-quality F-Mount lenses, allowing you to tailor the camera to your specific needs
  • Superior Image Resolution 6X Better Than the Leading Standard - The Vision Pro X offers unparalleled image resolution, improving by a factor of 6X over previous leading cameras
  • Adaptability Across All Sports - Continuously variable pixel density ensures precise results regardless of the pace of competition
  • Enhanced Light Sensitivity for Any Environment - Equipped with improved light sensitivity, reducing noise and delivering crystal-clear results even in less-than-ideal lighting conditions

  • Weight - 2.1 kg
  • Dimensions - 16.7cm x 7.5cm x 15.5cm
  • Max Frame Rate - 40,000 fps
  • Vertical Pixels - 2560 (100% Zoom) | 5120 (200% Zoom)
  • Standard Features - Timer-Enabled | Internal GPS Synchronization | 2-D Wireless Electronic Viewfinder Functionality | Internal Inclinometer | Real-Time Lossless Image Compression | Hardware and Software Gamma Control | Phased Light Compensation | IR Filter
  • Image Compression - Real-Time Lossless
  • Available Lens Mounts - CS-Mount, C-Mount, F-Mount
  • Power Inputs - Standard: 802.3at POE+ | Options: 100-240 VAC w/ adapter or 12v DC input
  • Approvals - FCC, CE, ICES

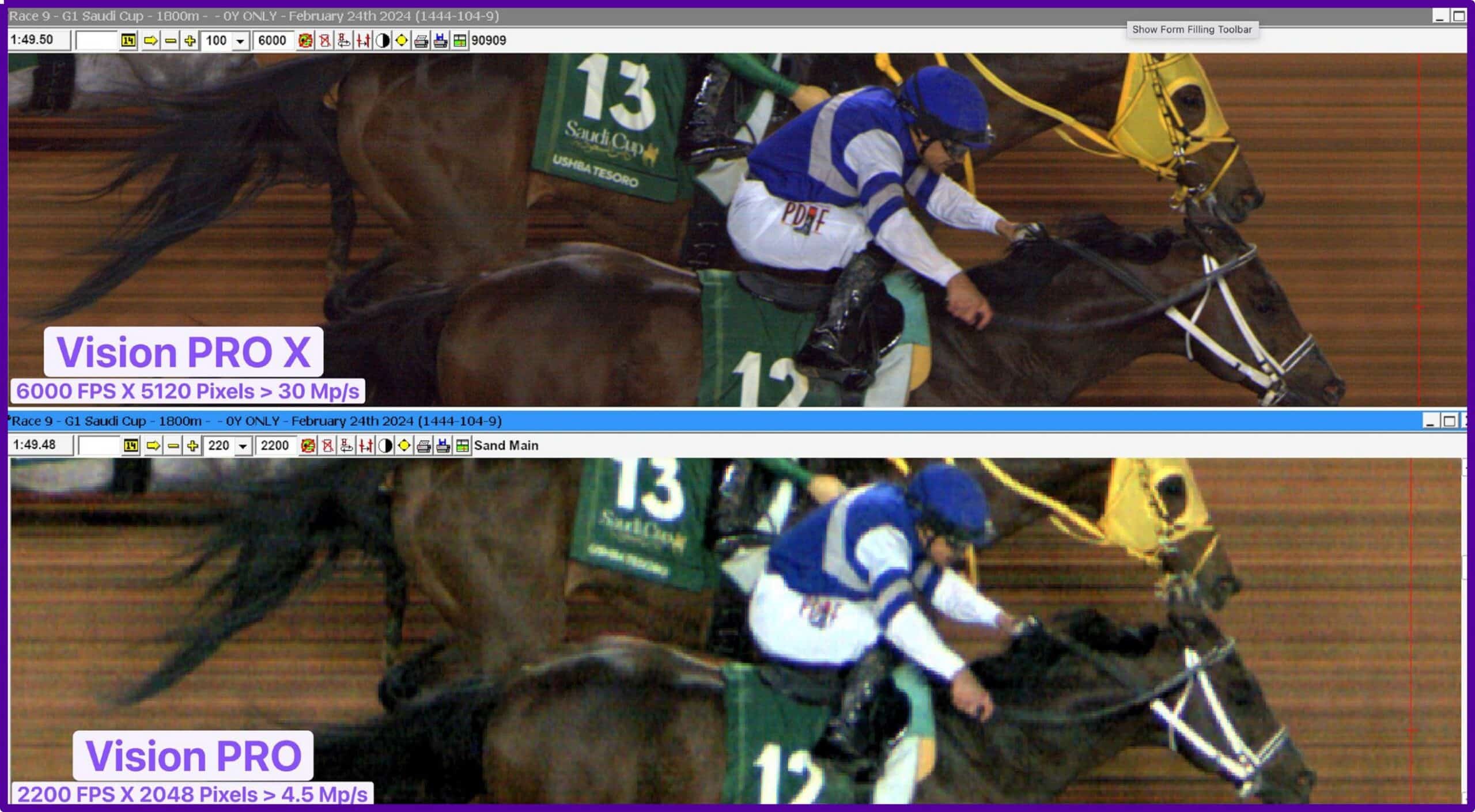

Unparalleled Image Resolution & Exceptional Light Sensitivity

Despite camera covering a 26m wide finish line imposing a 1.1/1 capture ratio, the Visions PRO X is capable of 6,000 fps. Despite a disadvantage of 4x illumination (6000/2200fps – f/2.8/f/1.8 lens) the Vision PRO X delivers better resolution with less noise.

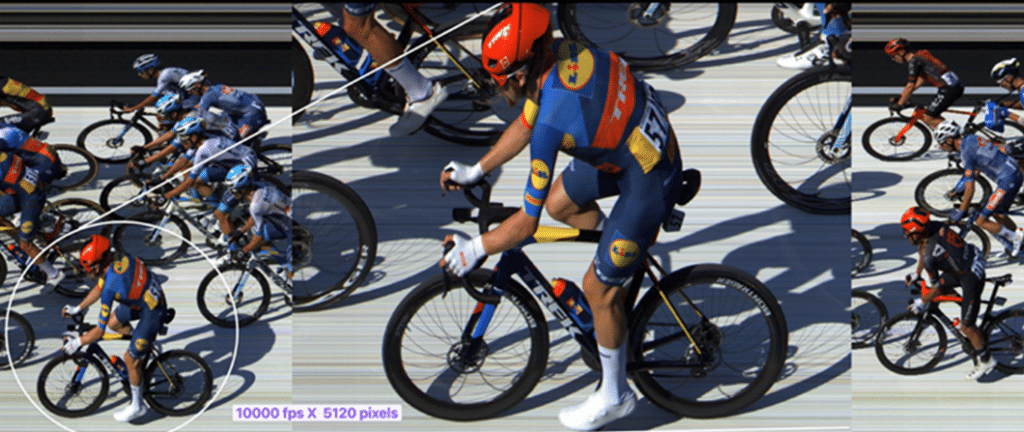

Exceptional Clarity Across All Sports

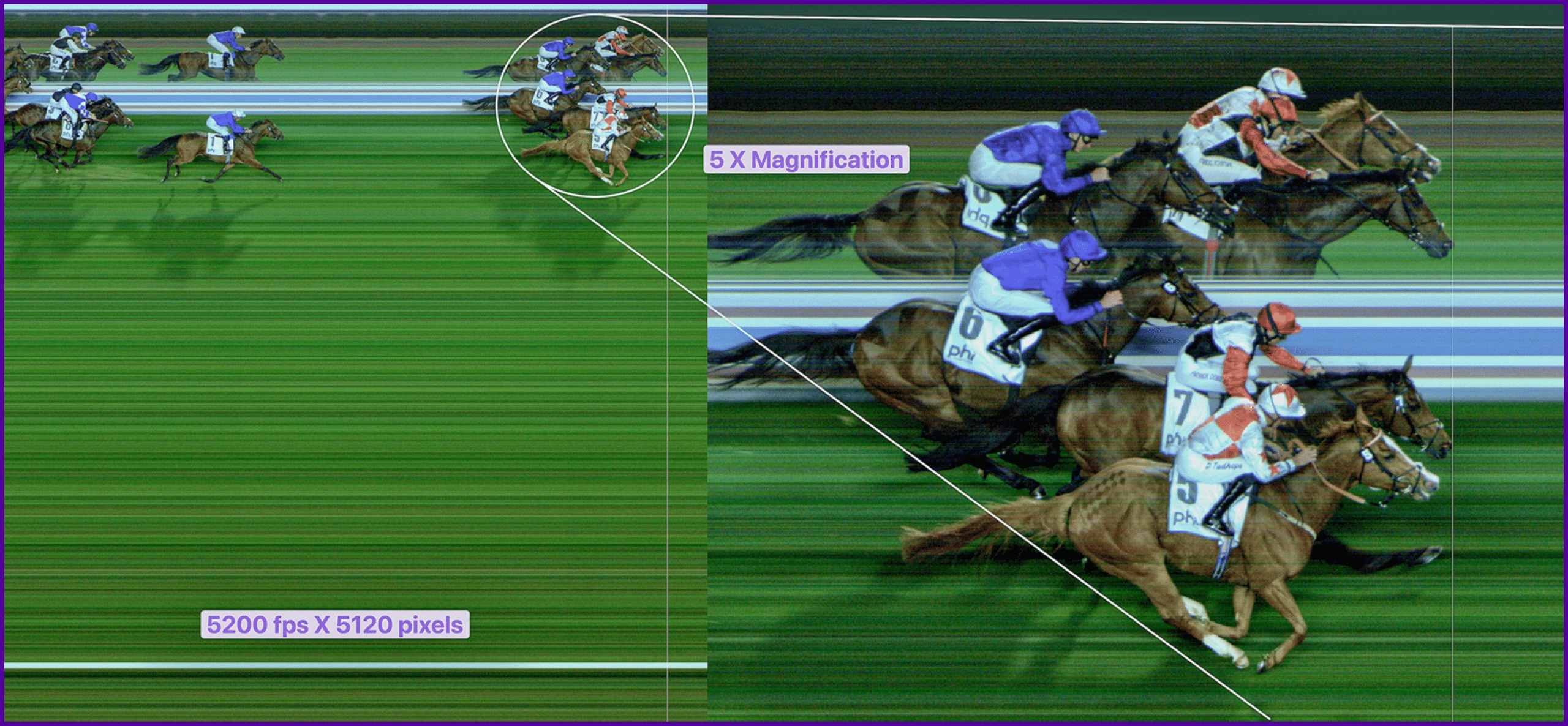

Extended Vertical Resolution

The Vision PRO X extended vertical resolution ensures precise adjudication, even when competitors occupy minimal sensor space, making it ideal for wide racecourses such as in rowing or horse racing.

Exceptional Light Sensitivity

Low-light? No problem. Enhanced light sensitivity ensures superior results in any lighting condition.
