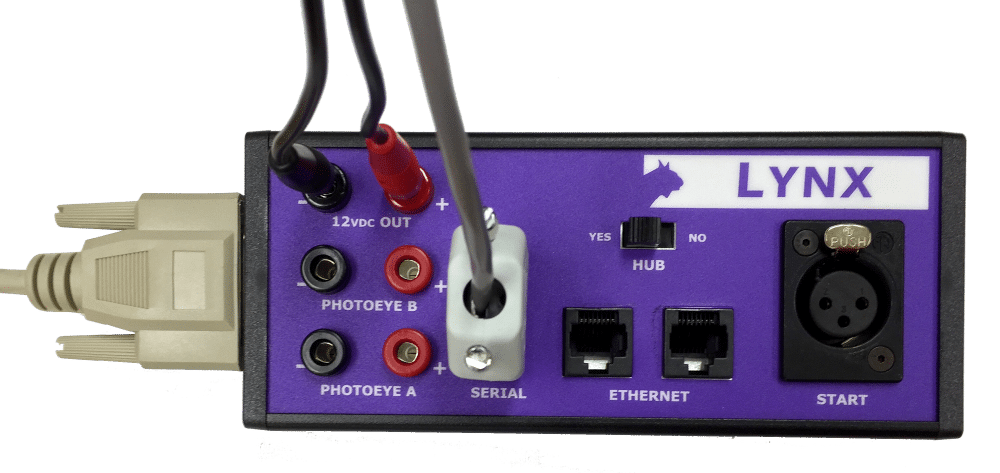

Connection Box (C-Box)

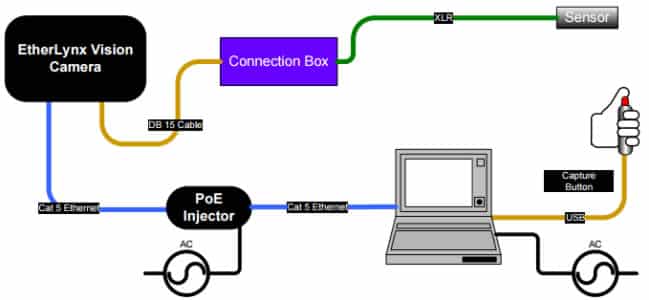

The: Connection Box is used to connect various external devices, such as: start sensors, wind gauges, or photoeyes to the EtherLynx cameras. The newer Connection Box retains all of the form and functionality of the original C-Box, while adding a second photoeye input for use with multiple photoeye configurations.

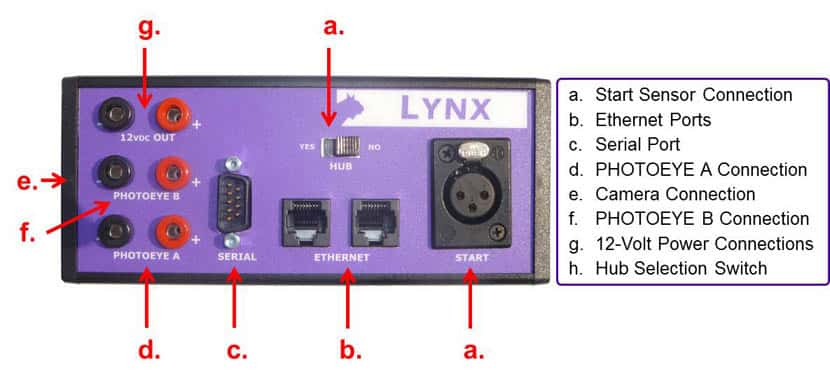

The connections include:

1. Start Sensor Connection
2. Ethernet Ports
3. Serial Port
4. Photoeye A & B Ports
5. Camera Connection
6. 12-Volt Power Connections
7. Hub Selection Switch
